>> Technical Information - Support Units

SRB bearings and housings may be mounted in a variety of support units according to the application and loading constraints. A number of variants are available as standard types with other unit types available on request.

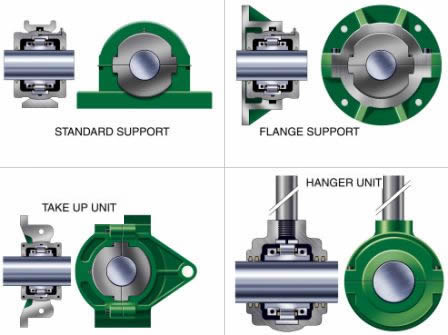

Standard Support UnitsStandard Support Units
Standard/Plumber Block Unit	Flange Units
This is by far the most popular method for mounting SRB units. These supports are manufactured from high strength, grade 250 (BS EN1561 :1997) cast iron. This, combined with the robust design, provides a stable, rigid base, allowing the split bearing fitted to give optimum performance.	This is by far the most popular method for mounting SRB units. These supports are manufactured from high strength, grade 250 (BS EN1561 :1997) cast iron. This, combined with the robust design, provides a stable, rigid base, allowing the split bearing fitted to give optimum performance.

Take-up Unit
These sliding units can be used to effectively tension conveyor and elevator systems.

Hanger Units
A compact unit commonly used for conveyors or similar equipment.

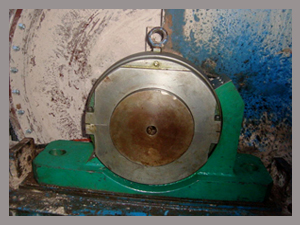

Angle support Unit : In application where shaft is hollow shaft directly mounted on gear box without coupling

Special Support Units

SRB can also offer a design and manufacturing facility to produce bespoke units to cover more specialised applications.

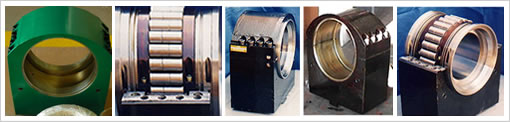

Examples of specialised support units
